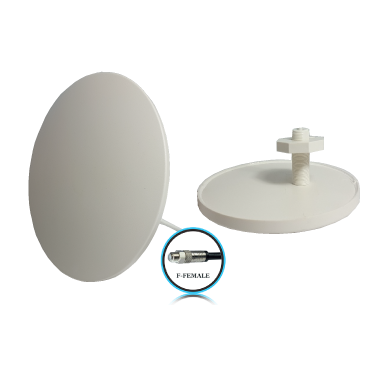

Ceiling Dome Omni Antenna without cable "F" female Connector -SEMEUDC3GS


Availability: In Stock
SKU: SEMEUDC3GS Categories: , , Tag:

MULTIBAND 3G/4G/LTE Smoothtalker Thin Profile Ceiling Mount Dome High Performance
Covers all Cellular Bands 600/700/800/900/1700/1800/1900/2100/2300/2500/2600 MHz. The antenna transmits and receives across the whole RF Band and is matched with the latest modulation standards, for uses in the 3G/4G/LTE spectrum applications. It has integrated mounting with ABS nut designed for tru-hole interior celiing applications. It is High Gain, Low PIM, Low VSWR with Small size which makes it non obtrusive for discreet installations. Power handling up to 50Watts without signal degredation.

Weight 1 lbs
Dimensions 12 × 4.75 × 3 in
Antenna Mount Type


Cable Type

1/4" OD 75ohm Quad Shield (RG6)

Connector End

F Female

Radiation Pattern Type


All Smoothtalker SEMEUDC3GS kits include

These Items can be added to your SEMEUDC3GS kit.

(optional, sold separately)

Description Type Link
SEMDC3 Antenna Data Sheet PDF Download
Antenna Mount Type: L-Bracket
Cable Type: 1/4" OD 75ohm Quad Shield (RG6)
Connector End: F Female
Radiation Pattern Type: Omni-360deg
