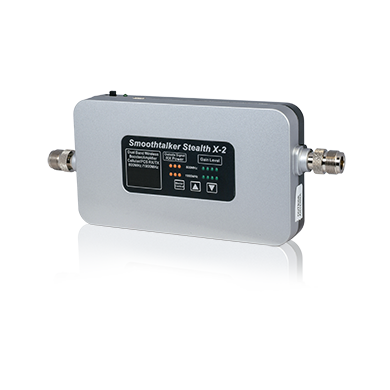

Stealth X2 80dB Extreme Power Booster For Buildings With 2 High Gain Directional Antennas and "N" connectors – BBCX280NK

Price is unavailable

Availability: In Stock
SKU: BBCX280NK Categories: , Tag:

Stealth X2 80dB Wireless High Power Building Booster Complete Kit The Stealth X2 80 dB gain is the highest power 80 dB building booster on the market. It increases incoming and outgoing signals and features a multiple LED console display with signal and gain level indicators to make installation quick, easy and effective. Features automatic oscillation control, and network overload protection to maintain maximum gain automatically at all times. These boosters can be used with optional splitters and antennas to provide a very large coverage footprint. High power 80 dB gain booster best suited for rural and remote locations greater than 6 mi. (10 km) and up to 30 mi. (50 km) from the nearest cellular tower.Covers up to 18,000 sq. ft. Note: This booster has “N” connectors.• Most powerful building booster available• LED console with manual control override• 2 high gain directional weatherproof antennas• Rugged long lasting cast aluminum housing• Industry Canada Certified• Made in Canada’



Weight 1 lbs
Dimensions 12 × 4.75 × 3 in
Booster Power Supply

120V AC

Building-Outside Antenna

Directional Panel D1

Cable ft

18

Cable ft (Out)

60

Cable Type (Out)

1/4" OD 50ohm Quad Shield (SEMRC205)

Cable Type

1/4" OD 50ohm Quad Shield (SEMRC205)

Connector End

N Female

Frequency Bands

Dual Band

Gain

80dB

Inside Antenna

Directional Panel D1

Radiation Pattern Type In

Directional-170deg

Radiation Pattern Type Out

Directional-170deg

All Smoothtalker BBCX280NK kits include

N Male Connector Wide Band Directional High Gain Antenna - SEMCD1NL

SKU: SEMCD1NL

Buy Now

N Male Connector Wide Band Directional High Gain Antenna - SEMCD1NL

SKU: SEMCD1NL

Buy Now

30ft Quad Shield C205 Co-ax "N" Male to "N" Female - CBCNmaNfe30

SKU: CBCNmaNfe30

Buy Now

30ft Quad Shield C205 Co-ax "N" Male to "N" Female - CBCNmaNfe30

SKU: CBCNmaNfe30

Buy Now

30ft Quad Shield C205 Co-ax "N" Male to "N" Female - CBCNmaNfe30

SKU: CBCNmaNfe30

Buy Now

120V Wall Power Supply - DCHC6hv

SKU: DCHC6hv

Buy Now

Stealth X2 80dB Amp Only With N Connectors - BBCX280naa

SKU: BBCX280naa

Buy Now

20ft Quad Shield C205 Co-ax "N" Male to "N" Female - CBCNmaNfe20

SKU: CBCNmaNfe20

Buy Now

These Items can be added to your BBCX280NK kit.

(optional, sold separately)

2Way N 50ohm Power Divider/Splitter NFE to NFE -ADCSPN2

SKU: ADCSPN2

Buy Now

30ft Quad Shield C205 Co-ax "N" Male to "N" Female - CBCNmaNfe30

SKU: CBCNmaNfe30

Buy Now

Panel Antenna Pole Mount Kit - SRCDP1BRss

SKU: SRCDP1BRss

Buy Now

Description Type Link
User Manual PDF Download
Booster Power Supply: 120V AC
Building-Outside Antenna: Directional Panel D1
Cable ft: 18
Cable ft (Out): 60
Cable Type (Out): 1/4" OD 50ohm Quad Shield (SEMRC205)
Cable Type: 1/4" OD 50ohm Quad Shield (SEMRC205)
Connector End: N Female
Frequency Bands: Dual Band
Gain: 80dB
Inside Antenna: Directional Panel D1
Radiation Pattern Type In: Directional-170deg
Radiation Pattern Type Out: Directional-170deg
