Stealth X6 60dB 6-Band 4G/5G Ready Cellular Booster Kit with "N" Connectors – BBUX660NP
Price is unavailable
Availability:
In Stock

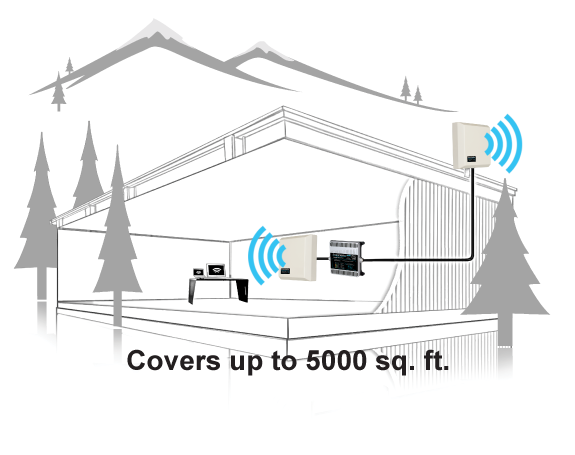

Extreme Power Building Cell Booster Kit With Directional Antennas Complete kit includes all parts required – with N type connectors Covers up to 5000 sq. ft.(Sq ft will vary with outside signal strength)
“X-Series are our most powerful best in class signal boosters for any location where maximum uplink and maximum downlink power is needed. Work in remote locations up to 30 miles (50 km) from the nearest cellular tower”
Below is Square footage coverage based on outside signal at your location:
- 5 bars: up to 5,000 sq. ft
- 4 bars: up to 3,000 sq. ft
- 3 bars: up to 1,500 sq. ft
- 2 bars: up to  750 sq. ft
- 1 bar: up to   500 sq. ft
- 0-1 bar: up to 300 sq. ft
Above varies with terrain & cell tower settings.
| Weight | 1 lbs |
|---|---|
| Dimensions | 12 × 4.75 × 3 in |
| Antenna Mount Type | L-Bracket |

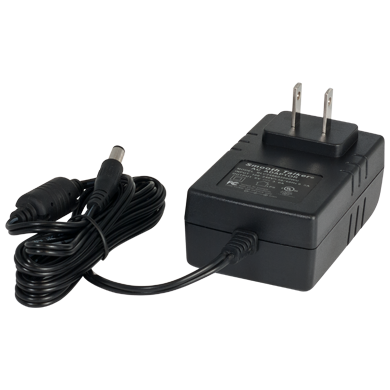

| Booster Power Supply | 120V AC |
| Building-Outside Antenna | Directional Panel DP1 |
| Cable ft (In) | 20 |
| Cable ft (Out) | 20 |
| Cable Type (Out) | 1/4" OD 50ohm Quad Shield (SEMRC205) |
| Connector End | N Female |
| Frequency Bands | Six Band |
| Gain | 60dB |
| Inside Antenna | Directional Panel DP1 |
| Radiation Pattern Type In | Directional-180deg |
| Radiation Pattern Type Out | Directional-180deg |
All Smoothtalker BBUX660NP kits include
Panel Antenna With 20ft Cable "N" Male Connector- With Mounting Bracket -SEMUDP1NL
SKU: SEMUDP1NL
Panel Antenna With 20ft Cable "N" Male Connector- With Mounting Bracket -SEMUDP1NL
SKU: SEMUDP1NL
These Items can be added to your BBUX660NP kit.
(optional, sold separately)
| Description | Type | Link |
|---|---|---|
| User Manual | Download |
| Antenna Mount Type: | L-Bracket |
|---|---|
| Booster Power Supply: | 120V AC |
| Building-Outside Antenna: | Directional Panel DP1 |
| Cable ft (In): | 20 |
| Cable ft (Out): | 20 |
| Cable Type (Out): | 1/4" OD 50ohm Quad Shield (SEMRC205) |
| Connector End: | N Female |
| Frequency Bands: | Six Band |
| Gain: | 60dB |
| Inside Antenna: | Directional Panel DP1 |
| Radiation Pattern Type In: | Directional-180deg |
| Radiation Pattern Type Out: | Directional-180deg |
