Stealth X6 70dB Extreme Power Building Booster With High Gain Directional Antennas with "N" Connectors – BBCX670NAP

Price is unavailable

Availability: In Stock
SKU: BBCX670NAP Categories: , Tag:

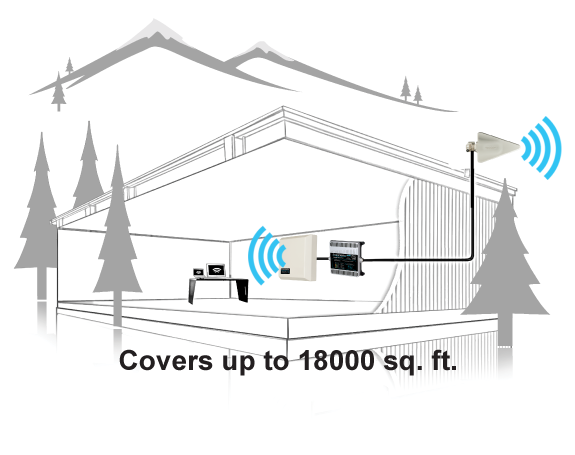

Extreme Power Building Cell Booster Kit With Directional Antennas Complete kit includes all parts required – with N type connectors Covers up to 18000 sq. ft.(Sq ft will vary with outside signal strength)

“X-Series are our most powerful best in class signal boosters for any location where maximum uplink and maximum downlink power is needed. Work in remote locations up to 30 miles (50 km) from the nearest cellular tower”

Below is Square footage coverage based on outside signal at your location:

  • 5 bars: up to 18,000 sq. ft
  • 4 bars: up to 10,000 sq. ft
  • 3 bars: up to 5,500 sq. ft
  • 2 bars: up to 3,500 sq. ft
  • 1 bar: up to  1,500 sq. ft
  • 0-1 bar: up to 1,000 sq. ft

Above varies with terrain & cell tower settings.

 width=

Weight 1 lbs
Dimensions 12 × 4.75 × 3 in
Antenna Mount Type

Pole Mount

Booster Power Supply

120V AC

Building-Outside Antenna

Directional Arrow A2 Log Yagi

Cable ft (In)

20

Cable ft (Out)

78

Cable Type

1/4" OD 50ohm Quad Shield (SEMRC205)

Connector End

N Female

Frequency Bands

Six Band

Gain

70dB

Inside Antenna

Directional Panel DP1

Radiation Pattern Type In

Directional-180deg

Radiation Pattern Type Out

Directional-85deg

All Smoothtalker BBCX670NAP kits include

Stealth X6 70dB Amp Only With N Connectors - BBCX670naa

SKU: BBCX670naa

Buy Now

30ft Quad Shield C205 Co-ax "N" Male to "N" Female - CBCNmaNfe30

SKU: CBCNmaNfe30

Buy Now

30ft Quad Shield C205 Co-ax "N" Male to "N" Female - CBCNmaNfe30

SKU: CBCNmaNfe30

Buy Now

120V Wall Power Supply - DCHC6hv

SKU: DCHC6hv

Buy Now

Panel Antenna N male Connector - SEMCDP1NL

SKU: SEMCDP1NL

Buy Now

N Male Connector Wide Band Directional High Gain Antenna - SEMCDA2NL

SKU: SEMCDA2NL

Buy Now

These Items can be added to your BBCX670NAP kit.

(optional, sold separately)

2Way N 50ohm Power Divider/Splitter NFE to NFE -ADCSPN2

SKU: ADCSPN2

Buy Now

20ft Quad Shield C205 Co-ax MCT Male to MCT Female - CBCXmaXfe20

SKU: CBCXmaXfe20

Buy Now

Panel Antenna Pole Mount Kit - SRCDP1BRss

SKU: SRCDP1BRss

Buy Now

Description Type Link
User Manual PDF Download
Antenna Mount Type: Pole Mount
Booster Power Supply: 120V AC
Building-Outside Antenna: Directional Arrow A2 Log Yagi
Cable ft (In): 20
Cable ft (Out): 78
Cable Type: 1/4" OD 50ohm Quad Shield (SEMRC205)
Connector End: N Female
Frequency Bands: Six Band
Gain: 70dB
Inside Antenna: Directional Panel DP1
Radiation Pattern Type In: Directional-180deg
Radiation Pattern Type Out: Directional-85deg
