Stealth X6 72dB 6-Band 4G/5G Ready Cellular Booster Kit with "F" Connectors – BBUX672GAP
$1,199.99
Availability:
In Stock

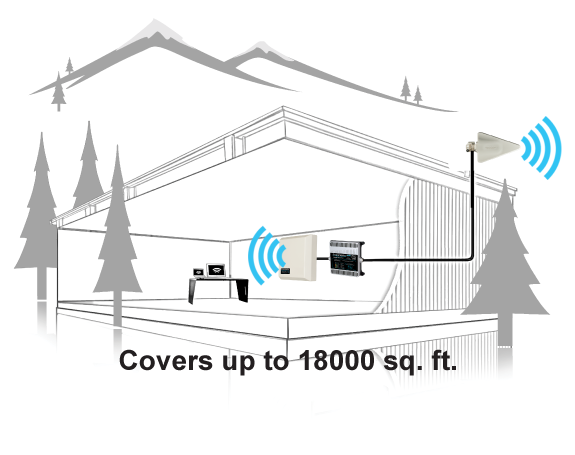

Extreme Power Building Cell Booster Kit With Directional Antennas Complete kit includes all parts required – with F type connectors Covers up to 18000 sq. ft.(Sq ft will vary with outside signal strength)
“X-Series are our most powerful best in class signal boosters for any location where maximum uplink and maximum downlink power is needed. Work in remote locations up to 30 miles (50 km) from the nearest cellular tower”
Below is Square footage coverage based on outside signal at your location:
- 5 bars: up to 18,000 sq. ft
- 4 bars: up to 10,000 sq. ft
- 3 bars: up to 5,500 sq. ft
- 2 bars: up to 3,500 sq. ft
- 1 bar: up to 1,500 sq. ft
- 0-1 bar: up to 1,000 sq. ft
Above varies with terrain & cell tower settings.
| Weight | 1 lbs |
|---|---|
| Dimensions | 12 × 4.75 × 3 in |
| Antenna Mount Type | L-Bracket |
| Booster Power Supply | 120V AC |
| Building-Outside Antenna | Directional Arrow A2 Log Yagi |
| Cable ft (In) | 30 |
| Cable ft (Out) | 90 |
| Cable Type (Out) | 1/4" OD 75ohm Quad Shield (RG6) |
| Connector End | F Male |
| Frequency Bands | Six Band |
| Gain | 72dB |

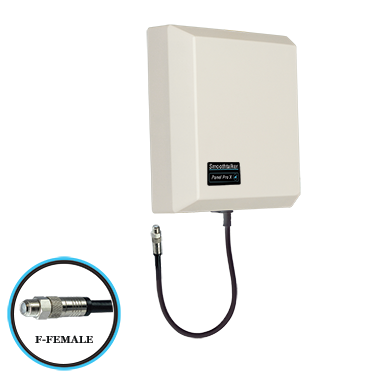

| Inside Antenna | Directional Panel DP1 |
| Radiation Pattern Type In | Directional-180deg |
| Radiation Pattern Type Out | Directional-180deg |
All Smoothtalker BBUX672GAP kits include
These Items can be added to your BBUX672GAP kit.
(optional, sold separately)
| Description | Type | Link |
|---|---|---|
| User Manual | Download |
| Antenna Mount Type: | L-Bracket |
|---|---|
| Booster Power Supply: | 120V AC |
| Building-Outside Antenna: | Directional Arrow A2 Log Yagi |
| Cable ft (In): | 30 |
| Cable ft (Out): | 90 |
| Cable Type (Out): | 1/4" OD 75ohm Quad Shield (RG6) |
| Connector End: | F Male |
| Frequency Bands: | Six Band |
| Gain: | 72dB |
| Inside Antenna: | Directional Panel DP1 |
| Radiation Pattern Type In: | Directional-180deg |
| Radiation Pattern Type Out: | Directional-180deg |
